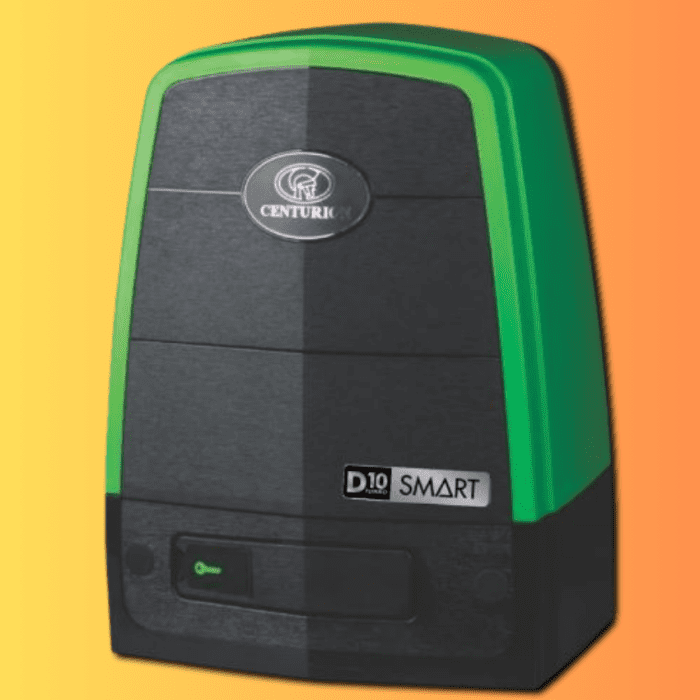

Centurion’s D10 Smart

Centurion’s D10 Smart

KSh 125,000.00

The D10 SMART commercial and heavy industrial sliding gate motor – suitable for gates weighing up to 1000kg. Up to 750 daily operations. 24V battery backup.

Main features:

  • Taking intelligence to the next level – a machine crafted for excellence and perfected through innovation
  • Pushing the limits of technology to bring you the ultimate in strength, security and endurance – suitable for gates weighing up to 1t with 750 daily operations
  • SMART hardware and SMART connectivity provide the best experience for installers
  • Intelligent theft and break-in protection with an integral vibration sensor and patented theft-deterrent cage
  • More space and a dedicated accessory tray for complementary solutions such as GSM devices
  • World-class reliability with a sealed gearbox and improved, more secure manual release mechanism
  • Die-cast aluminium gearbox coupled with a high-torque DC motor built for pure power and performance
  • Uncompromising security, and uninterrupted convenience with 24V battery backup
  • Instant access to advanced, in-app diagnostics and logs, monitoring system health in real time
  • Accurate and safe position control incorporating reliable Hall Effect technology
  • Improved wire routing
  • SMART universal controller – compatible with all CENTURION SMART solutions

Description

Technical Specifications:

D10-SMART D10 TURBO-SMART
Input voltage 90V – 240V AC +/-10% @ 50Hz 1 90V – 240V AC +/-10% @ 50Hz1
Current consumption (Mains) 250mA 250mA
Battery charger current output 1.8A @ 27.4V +/-1% 1.8A @ 27.4V +/-1%
Maximum number of operations per day 750 3, 6 750 3, 6
Duty cycle – Mains present2, 3 45% 25%
Motor voltage 24V DC 24V DC
Motor power supply Battery-driven (Standard Capacity – 2x 12V 7.2Ah) Battery-driven (Standard Capacity – 2x 12V 7.2Ah)
Current consumption (motor at rated load) 8A 10A
Input / Output sink currents (Max accessory current draw)
I/O 1-4 100mA (12/24V) 100mA (12/24V)
I/O 5 and 6 3A (12/24V) 10sec Pulse 3A (12/24V) 10sec Pulse
Motor push force – starting 40Kgf 24Kgf
Motor push force – rated 30Kgf 18kgf
Gate mass – maximum 1000Kg 250kg8
Gate length – maximum 50m 50m
Gate speed (varies with load)4 Up to 26m/min4 Up to 45m/min8
Manual Override Lockable with key release Lockable with key release
Drive Pinion 17T Module 4 20T Module 4
Operations in standby with 2x 7Ah batteries Power saving (15m/min 15kgf) Normal (26m/min 15kgf) Power saving (15m/min 9kgf) Normal (45m/min 9kgf)
Half day2, 5, 6 118 | 63 189 | 130
Full day2, 5, 6 93 | 50 150 | 104
Collision Sensing Electronic Electronic
Operating temperature range -15°C to +50°C -15°C to +50°C
Onboard receiver type Code-hopping multichannel receiver with selective add and delete Code-hopping multichannel receiver with selective add and delete
Receiver code storage capacity 1500 Remotes7 1500 Remotes7
Receiver frequency 433.92MHz 433.92MHz
Degree of protection IP54 IP54
Mass of unit packed (with standard kit, but excl. rack and battery) 13Kg 13.5Kg
Packaging dimensions (with standard kit, but excl. rack and battery) 350mm wide x 282mm deep x 470mm high 350mm wide x 282mm deep x 470mm high
