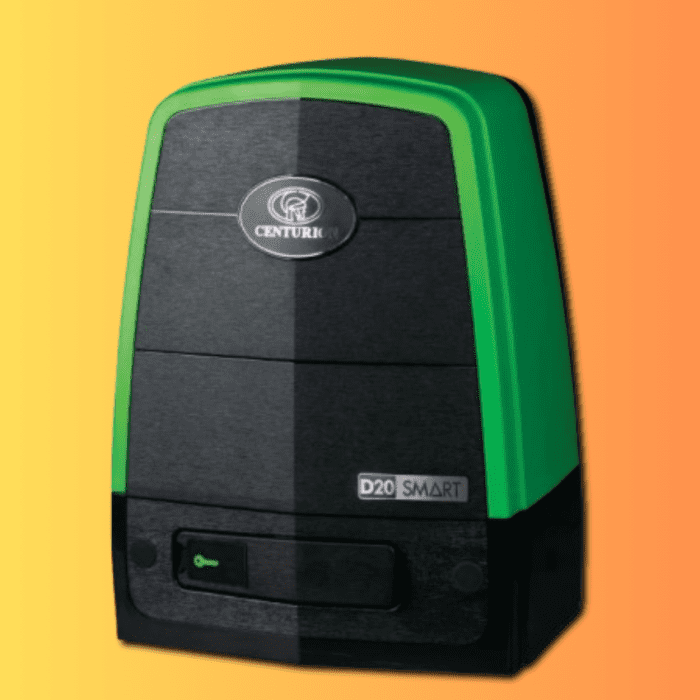

Main features:

Strong enough to move a 2t gate
Easy “drop-in” replacement for existing A10 sites
SMART technology makes the D20 SMART as intelligent as it’s solid
Installer-friendly design with easy access to mounting hardware, optimised cable routing and a dedicated accessory tray
Smooth and strong
Alert and agile – highly reliable Hall Effect technology keeps track of the gate position at all times, and ensures pin-point stopping


	Input voltage	90V – 240V AC +/-10% @ 50Hz¹
	Current consumption (Mains)	250mA
	Battery charger current output	1.8A @ 27.4V +/-1%
	Maximum number of operations per day	750.^{2, 5}
	Duty cycle – Mains present^{2, 3}	45%
	Motor voltage	24V DC
	Motor power supply	Battery-driven (Standard Capacity – 2x 7.2Ah)³
	Current consumption (motor at rated load)	9A
	Input / Output sink currents (Max accessory current draw)
	I/O 1-4	100mA (12/24V)
	I/O 5 and 6	3A (12/24V) 10sec Pulse
	Motor push force – starting	52kgf
	Motor push force – rated	39kgf
	Gate mass – maximum	2000kg
	Gate length – maximum	25m
	Gate speed (varies with load)^{2, 5}	Up to 18m/min³
	Manual Override	Lockable lever with key release
	Drive Pinion	13T Module ⁴
	Operations in standby with 2x 7.2Ah batteries	Power Saving (15m/min 20kgf) \| Normal (18m/min 20kgf)
	Half day^{2, 3, 4}	101 \| 55
	Full day^{2, 3, 4}	80 \| 45
	Collision Sensing	Electronic
	Operating temperature range	-15°C to +50°C
	Onboard receiver type	CENTURION rolling code (Keeloq encryption) multichannel
	Receiver code storage capacity	1500 Remotes6
	Receiver frequency	433.92MHz
	Degree of protection	IP54
